Product Datasheet Search Results:

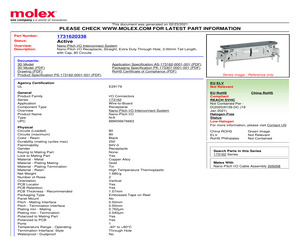

2 Pages, 52 KB, Original- 1731620338
- Molex
- Conn Nano-Pitch I/O RCP 80 POS 0.5mm Solder ST Thru-Hole 80 Terminal 1 Port T/R
Product Details Search Results:
Molex.com/1731620338
{"Packaging ":"Tape and Reel","Pitch (mm)":"0.5(mm)","Current Rating (Max)":"0.5/Contact(A)","Operating Temperature Min Deg. C":"-40C","Gender":"RCP","Body Orientation":"Straight","Operating Temperature Max Deg. C":"80C","Product Length (mm)":"24.88(mm)","Mounting Style":"Through Hole","Number of Ports":"1(Port)","Operating Temp Range":"-40C to 80C","Product Depth (mm)":"7.5(mm)","Voltage Rating Max":"30VDC/30VAC","Contact Plating":"Gold Over Nickel","Termination Method":"Solder","Number of Contacts":"80(PO...
1645 Bytes - 18:16:31, 14 January 2026
